Barite, a mineral abundant in barium sulfate (BaSO4), is a versatile material with a wide range of applications across various industries. Its high density, chemical inertness, and ability to absorb X-rays make it an essential component in sectors such as oil drilling, chemical manufacturing, plastics, rubber, and even medical imaging. One of the most critical applications of barite is in the oil and gas industry, where it is used as a weighting agent in drilling fluids to stabilize well pressure and prevent blowouts. For this purpose, barite must be ground into ultrafine powder, typically with a fineness of at least 325 mesh. Clirik, a renowned manufacturer of advanced grinding equipment, has developed an ultrafine mill that not only meets but exceeds these industry standards, providing an efficient, precise, and environmentally friendly solution for barite grinding.
1. Pre-Processing: Feeding and Preliminary Crushing

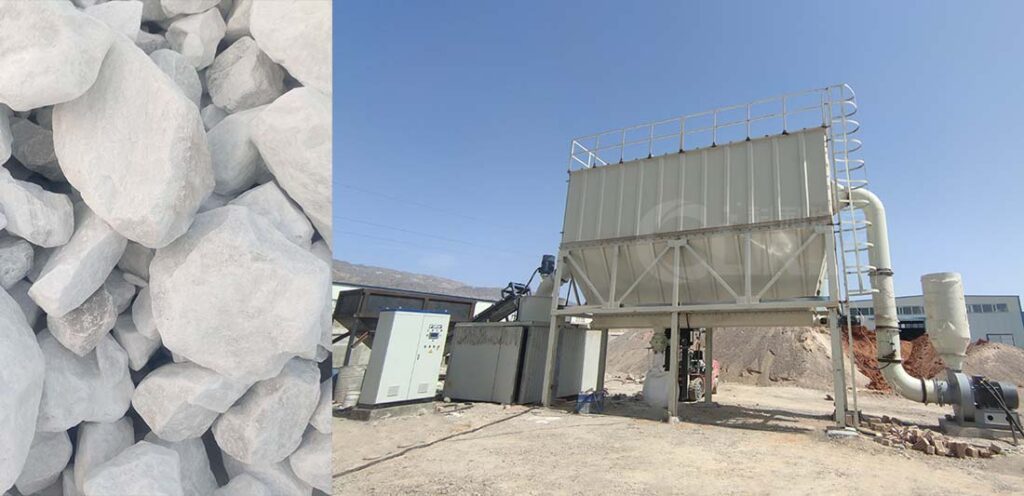

The journey of barite through Clirik’s ultrafine mill begins with the raw material being fed into a jaw crusher. This step is facilitated by an electromagnetic vibrating feeder, which ensures a consistent and uniform supply of barite chunks into the crusher. The vibrating feeder is designed to handle large volumes of material while maintaining a steady flow rate, which is crucial for the efficiency of the entire grinding process. The jaw crusher, equipped with robust movable and fixed jaws, applies compressive force to break down the large barite chunks into smaller, more manageable pieces. The objective at this stage is to reduce the size of the barite to below 10mm, making it suitable for the subsequent grinding stages. The jaw crusher’s efficiency is enhanced by its adjustable settings, allowing operators to fine-tune the crushing ratio based on the size of the incoming material.
2. Material Transportation and Storage
Once the barite has been preliminarily crushed, it is transported to a storage hopper using a bucket elevator. This step is essential for several reasons. Firstly, the bucket elevator ensures that the crushed barite is lifted efficiently from the ground level to the storage hopper, which is typically located at a higher elevation. This vertical transportation is necessary because the grinding mill is usually positioned above the ground to facilitate the smooth flow of material through the system. The bucket elevator is designed to handle the abrasive nature of barite, with durable buckets and a sturdy frame that can withstand the wear and tear associated with continuous operation. The storage hopper serves as a buffer, storing the crushed barite temporarily and ensuring a continuous supply of material to the grinding mill. This is particularly important during periods of fluctuating feed rates or when the upstream crushing process experiences downtime. The hopper’s capacity is carefully calculated to balance the need for sufficient storage with the overall footprint of the grinding system.
3. The Core Grinding Stage
The heart of the barite grinding process lies in the ultrafine mill itself. This state-of-the-art machine is designed to take the pre-processed barite and transform it into ultrafine powder through a series of meticulously engineered steps. The mill operates on the principle of high-pressure grinding, where multiple grinding rings and rollers work in tandem to exert significant force on the material. The barite is fed into the mill through a central feed pipe, where it is distributed evenly across the grinding table. As the table rotates, the barite is gradually pushed towards the outer edge, where it encounters the grinding rings and rollers. The rollers, mounted on a rotating shaft, apply downward pressure on the material, crushing it into finer particles. This process is repeated multiple times as the material passes through different layers of grinding rings, ensuring thorough and uniform grinding. One of the key features of Clirik’s ultrafine mill is its ability to control the fineness of the final product with remarkable precision. The mill’s design allows for adjustments in the grinding pressure, speed, and other parameters, enabling the production of barite powder with a fineness ranging from 325 to 3000 mesh. This wide range of adjustability makes the mill highly versatile, catering to the diverse requirements of various industries. For example, in the drilling industry, where barite is used as a weighting agent, a fineness of 325 mesh is typically required to ensure proper suspension in drilling fluids. In contrast, for applications in the chemical or pharmaceutical industries, a much finer powder, such as 1250 mesh or higher, may be necessary to achieve the desired reactivity or purity.
4. Classification and Quality Control
After the grinding process, the barite powder is carried by an airflow to a classifier, where it undergoes a critical quality control step. The classifier is a sophisticated piece of equipment designed to separate the ground barite powder based on particle size. It consists of a rotating impeller that creates a centrifugal force field, causing the finer particles to be drawn towards the center while the coarser particles are pushed to the periphery. Only particles that meet the desired fineness criteria are allowed to pass through the classifier and proceed to the next stage. The coarser particles, which did not meet the required fineness, are redirected back to the grinding chamber for further processing. This closed-loop system ensures that all barite powder is ground to the specified fineness, maintaining a high level of consistency and quality in the final product. The classifier’s efficiency is crucial for the overall performance of the grinding system. It not only ensures that the final product meets industry standards but also optimizes the grinding process by preventing over-grinding of already fine particles. This, in turn, reduces energy consumption and wear on the grinding components, contributing to the mill’s overall efficiency and longevity.
5. Collection and Packaging

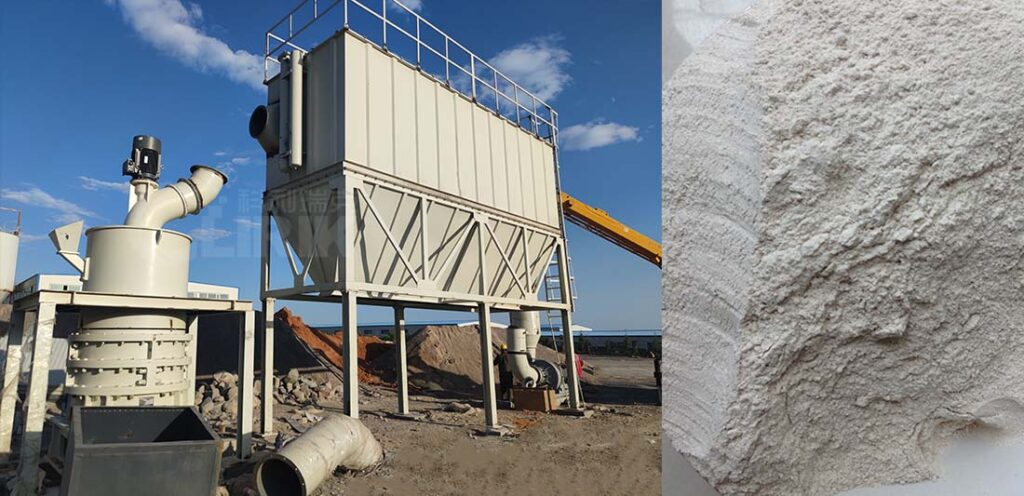

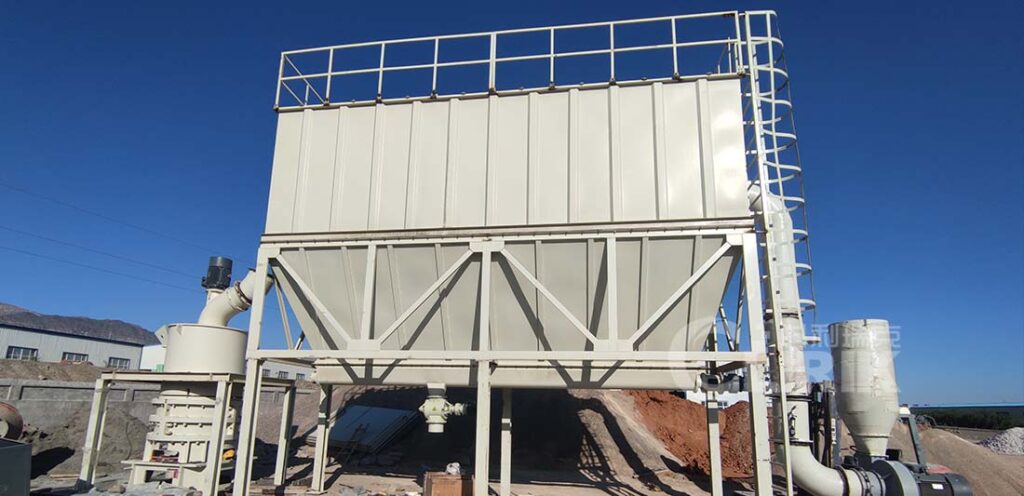

The final stage of the barite grinding process involves the collection and packaging of the ultrafine powder. The qualified powder, having passed through the classifier, is transported through a series of pipelines to a cyclone collector. The cyclone collector is a cylindrical device that uses centrifugal force to separate the fine powder from the airflow. As the air and powder mixture enters the cyclone, the rapid rotation causes the heavier powder particles to be thrown against the walls of the collector, where they slide down and are collected at the bottom. The clean air, now free of powder, exits the cyclone through the top and is either recirculated or released into the atmosphere after passing through a dust removal system. The collected barite powder is then transferred to a storage bin, where it is ready for packaging and transportation. Clirik’s ultrafine mill is designed with environmental protection in mind. The entire grinding process operates under negative pressure, ensuring that dust emissions are minimized. The mill is equipped with a high-efficiency dust removal system that captures and filters any residual dust particles, preventing them from escaping into the environment. This not only ensures compliance with environmental regulations but also creates a safer and cleaner working environment for operators.
High-Efficiency Grinding Technology
Clirik’s ultrafine mill integrates advanced grinding technology to significantly boost barite grinding efficiency. It achieves higher output than traditional methods, with a capacity of 0.5 to 45 tons per hour. The mill’s grinding rings and rollers, made of high-quality wear-resistant materials, ensure long service life and optimal performance. Its multi-stage grinding mechanism and precise control of grinding parameters enable high fineness in the final product, meeting various industry standards.
Adjustable Fineness Control
Clirik’s mill can produce barite powder with fineness ranging from 325 to 3000 mesh. This adjustability is achieved through mechanical and electronic controls, allowing operators to fine-tune the grinding process based on desired fineness and material characteristics. The mill can produce finer powder by increasing grinding pressure and reducing speed, or coarser powder by decreasing pressure and increasing speed.
Durability and Low Maintenance
The mill’s components, such as grinding rings and rollers, are made from high-quality wear-resistant materials, ensuring long service life and low maintenance costs. Its robust construction and advanced design, along with advanced sealing and lubrication systems, minimize wear and simplify maintenance. The mill’s easy-to-access design facilitates routine inspection and timely issue resolution.
Environmental Protection and Sustainability
Clirik’s mill operates under negative pressure with a high-efficiency dust removal system, minimizing dust emissions and ensuring a clean working environment and compliance with environmental regulations. Its energy-efficient design and closed-loop system for re-grinding coarser particles further enhance its sustainability.
